产品详情
| 产品名称: | ASUTEC角挡模块 ASME-15 ASME-60 ASME-150 |
|---|---|
| ASUTEC: | ASME-15 |
| 型号: | ASME-60 (EW) |
| 型号: | ASME-60 (DW) |
| 型号: | ASMEHS-60 |
| 型号: | ASME-150 |
| 型号: | ASME-270 |
| 型号: | ASME-500 |
| 型号: | ASME-1200 |
产品描述

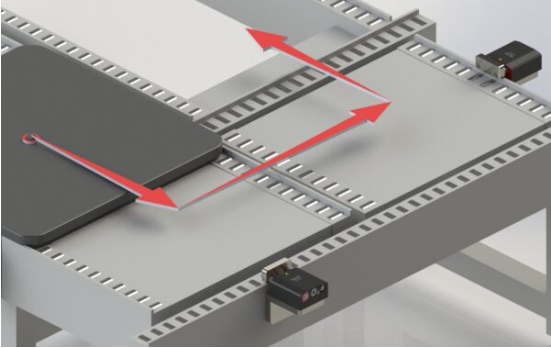

停止工件托架以改变方向
转角减震器轻柔地缓冲工件托盘，并接管工件托盘从横向到纵向的进料和出料，反之亦
然。当工件载体上有冲击敏感产品并且必须确保平稳传输时，通常使用转角阻尼器。
提供气动和电动版本。
ASME-1200 的优势:
工件托盘从横向到纵向的无振动进料和出料，反之亦然。
降低制造成本加速度强度可调
与 Asutec 阻尼装置结合使用，实施精确的程序简单的实施
 | ASME-15 Corner stop module for workpiece carrier loads from 0,25 kg up to 15 kg. Usually, for installation on the Bosch Rexroth positioning unit HP 1 ASME-15-W Corner stop module for workpiece carrier loads from 0,25 kg up to 15 kg. Usually, for installation on the Bosch Rexroth TS 1 Transfer system with a stop rail AL1 or at a lift-transverseunit HQ 1 |

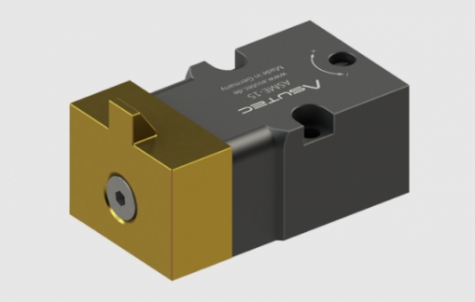

ASME-15 气动角挡模块 带一个空气接口 用于工件载具负载0.25kg-15 kg |
 | ASME-60 ASME-60-100 ASME-60-H ASME-60-E ASME-60-W ASME-60-W-H |

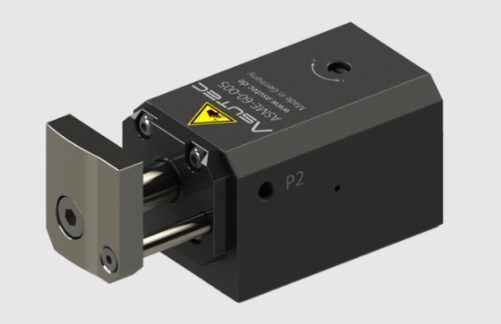

ASME-60 (EW) 气动角挡模块 带一个空气接口 用于工件托架负载1kg-60 kg |
 | ASME-60-004 ASME-60-005 ASME-60-101 ASME-60-102 ASME-60-E-001 ASME-60-E-100 ASME-60-I-001 ASME-60-I-100 ASME-60-I-101 ASME-60-I-102 ASME-60-I-103 ASME-60-W-004 ASME-60-W-010 ASME-60-W-102 ASME-60-W-103 ASME-60-W-104 ASME-60-W-I-100 ASME-60-W-I-101 ASME-60-W-I-102 ASME-60-W-I-103 ASME-60-E-W-001 ASME-60-E-W-100 |
ASME-60 (DW) 气动角挡模块 带两个空气连接 用于工件载具负载3kg-60 kg |
 | ASMEHS-60 ASMEHS-60-100 ASMEHS-60-H ASMEHS-60-W ASMEHS-60-W-H ASMEHS-60-E ASMEHS-60-E-W |
ASMEHS-60 气动角挡模块 带一个空气接口 用于工件载具负载1kg-90 kg |
 | ASME-150 ASME-150-H ASME-150-E ASME-150-100 ASME-150-101 ASME-150-107 ASME-150-108 ASME-150-109 ASME-150-110 ASME-150-111 ASME-150-112 ASME-150-001 ASME-150-003 ASME-150-006 ASME-150-011 |
ASME-150 气动角挡模块 带两个空气连接 用于工件载重5 kg-150kg |
 | ASME-270 ASME-270-E ASME-270-1 |
ASME-270 气动角挡模块 带两个空气连接 用于工件载具负载10kg-270 kg |
 | ASME-500 Corner stop module with a standard stop plate for workpiece carrier loads from 10 kg up to 500 kg. Two air connections for pneumatic extension and retraction of the stop plate. ASME-500-E Corner stop module with a standard stop plate for workpiece carrier loads from 10 kg up to 500 kg. Two air connections for pneumatic extension and retraction of the stop plate. Option for querying the stop plate position (extended or retracted) by T-slot sensors. |
ASME-500 气动角挡模块 带两个空气连接 用于工件载具负载10kg-500kg |
 | ASME-1200 Corner stop module with a standard stop plate for workpiece carrier loads from 40 kg up to 1200 kg. Two air connections for pneumatic extension and retraction of the stop plate. ASME-1200-E Corner stop module with a standard stop plate for workpiece carrier loads from 40 kg up to 1200 kg. Two air connections for pneumatic extension and retraction of the stop plate. Option for querying the stop plate position [extended or retracted) by T-slot sensors. |
ASME-1200 气动角挡模块 带两个空气连接 用于工件载重40 kg-1200 kg |
