产品详情
| 产品名称: | ASUTEC无阻尼的止动模块 ASUR-250 |
|---|---|
| ASUTEC: | ASUR-250 |
| 型号: | ASMR-270 |
| 型号: | ASUR-400 |
| 型号: | ASMR-400 |
| 型号: | ASMR-600 |
| 型号: | ASMR-1000 |
| 型号: | ASMR-1000-EW-15-002 |
产品描述
高速止动模块，特别适用于非常高的速度和高工件负
载。
决定权在用户手中:可以以相同的速度运输更高的质量，或者以相同的质量实现更高的速
度。因此，ASMHS*系列优化的减振系统不仅可以满足快速、灵活生产的要求。

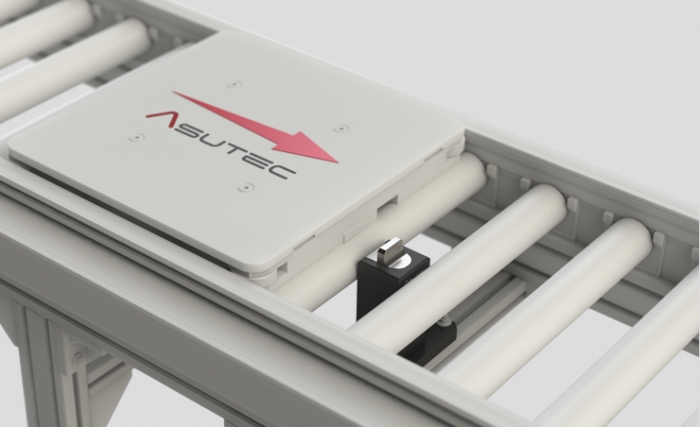

阻尼模块用于阻尼进入工件架的冲击，而不会振动到终端位置。它们保证了工件的最佳位
置稳定性。挡块保持在终端位置，无需反作用力，无需额外分度即可实现非常精确的定
位。气动阻尼装置可以根据工件托盘的重量进行无级调节。
接近开关的紧固选项可用于感应监控工件托盘是否与限位器接触或是否已通过限位器。
提供气动和电动版本。
 | ASUR-250-EW-20-1 ASUR-250 WITH FASTENING SET FOR REXROTH TS 5 Including air connection and fastening set for for TS 5. ASUR-250-EW-20-1-101(B=455 mm) ASUR-250-EW-20-1-102(B=650 mm) ASUR-250-EW-20-1-103(B=845 mm) ASUR-250-EW-20-1-104(B=1040 mm) ASUR-250 WITH FASTENING SET FOR REXROTH TS 5-0C Including air connection and fastening set for for TS 5. ASUR-250-EW-20-1-105(B=455 mm) ASUR-250-EW-20-1-106 (B=650 mm) ASUR-250-EW-20-1-107(B=845 mm) ASUR-250-EW-20-1-108(B=1040 mm) |

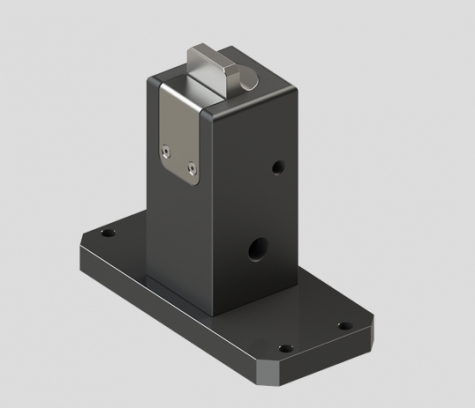

ASUR-250 系列 止动模块-无阻尼，用于辊筒输送 系统，气动 工件载具负载可达250kg |
 | ASMR-270-EW-15 Stop module with damping for workpiece carrier loads up to 270 kg Single acting function, 15 mm lowering stroke Option to query the upper and lowered position with inductive sensors |
ASMR-270 系列 止动模块-带阻尼，用于滚筒输送 系统，气动 工件载具负载15 kg 至270 kg |
 | ASUR-400-EW-15 ASUR-400-EW-15-001 ASUR-400-DW-15 ASUR-400-DW-15-001 |
ASUR-400 系列 止动模块-带阻尼，用于滚筒输送系统，气动 工件载具负载从15kg到400kg |
 | ASMR-400-EW-15 Stop module with damping for workpiece carrier loads up to 400 kg Single acting function, 15 mm lowering stroke Option to query the upper and lowered position with inductive sensors ASMR-400-DW-15 Stop module with damping for workpiece carrier loads up to 400 kg Double acting function, 15 mm lowering stroke Option to query the upper and lowered position with inductive sensors |
ASMR-400 系列 止动模块-带阻尼，用于滚筒输送 系统，气动 工件载具负载从15 kg 到400 kg |
 | ASMR-600-EW-15 Stop module with damping for workpiece carrier loads up to 600 kg Single acting function, 15 mm lowering stroke Option to query the upper and lowered position with inductive sensors ASMR-600-DW-15 Stop module with damping for workpiece carrier loads up to 600 kg Double acting function, 15 mm lowering stroke Option to query the upper and lowered position with inductive sensors |
ASMR-600 系列 止动模块-带阻尼，用于滚筒输送 系统，气动 工件载具负载从15 kg 到600 kg |
 | ASMR-1000-EW-15 Stop module with damping for workpiece carrier loads up to 1000 kg Single acting function, 15 mm lowering stroke Option to query the upper and lowered position with inductive sensors ASMR-1000-DW-15 Stop module with damping for workpiece carrier loads up to 1000 kg Double acting function, 15 mm lowering stroke Option to query the upper and lowered position with inductive sensors |
ASMR-1000 系列 止动模块-带阻尼，用于辊筒输送 系统，气动 工件载具负载从50kg到1000 kg |
 | ASMR-1000-EW-15-002 Stop module with damping for workpiece carrier loads up to 1000 kg Single acting function, 15 mm lowering stroke Option to query the upper and lowered position with inductive sensors ASMR-1000-DW-15-002 Stop module with damping for workpiece carrier loads up to 1000 kg Double acting function,15 mm lowering stroke Option to query the upper and lowered position with inductive sensors |
ASMR-1000-EW-15- 002 止动模块-带阻尼，用于辊筒输送 系统，气动 工件载具负载从50 kg到1000 kg |
