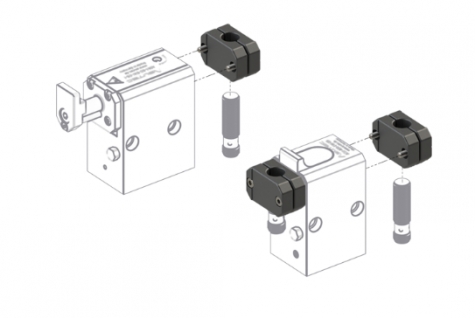

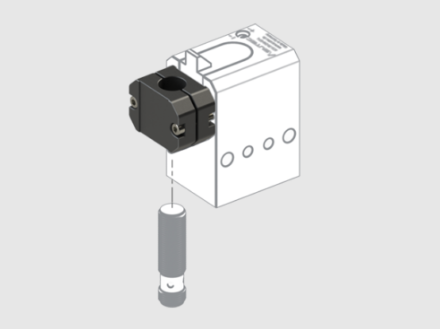

75003004

开关支架

用于固定 M12x1 电感式传感器，以从下方查询工件

托架位置。

用于停止模块 ASU-800。

75003005

开关支架

用于固定 M12x1 电感式传感器，以从下方查询工件

托架位置。

用于止动模块ASU-400、ASM-60、ASHMS-60。

75003006

开关支架

用于固定 M12x1 电感式传感器，以从下方查询工件

托架位置。

安装在截面型材的内槽上。

75003007

开关支架

用于固定 M12x1 电感式传感器，用于横向查询工件

托架位置。

安装在截面型材的外槽上。

75003021

开关支架

用于固定M12x1 电感式传感器，以从下方查询工件

托架位置。

用于停止模块ASU-70。

75003073

开关支架

用于固定 M12x1 电感式传感器，以从下方查询工件

托架位置。

对于停止模块 ASMNG-80。

75003075

Position detection for ASMNG-80.

Can be retrofitted for the inductive query

of the upper and lowered position

with inductive sensors M8x1.

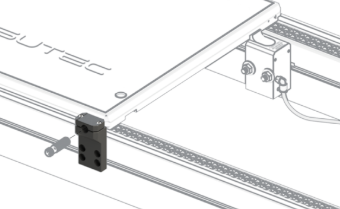

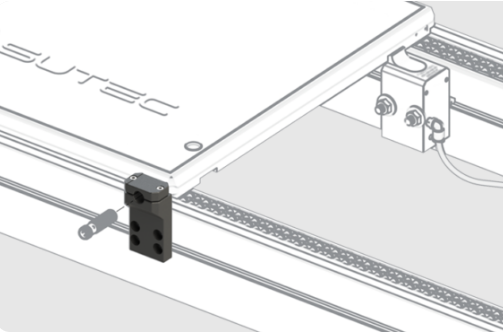

75003080

Switch bracket

Used to fasten a M12x1 proximity switch to

query the workpiece carrier from the side.

Not crossable.

75003083

Position detection for ASMNG-80

Can be retrofitted for the query

of the upper and lowered position

with T-slot magnetic field sensors

75003084

Position detection for ASMNG-220

Can be retrofitted for the query

of the upper and lowered position

with T-slot magnetic field sensors

POSITION DETECTION-

RETROFITTABLE

Position detection for different devices.

Can be retrofitted for the inductive query

of the upper and lowered position with

inductive sensors M12x1.

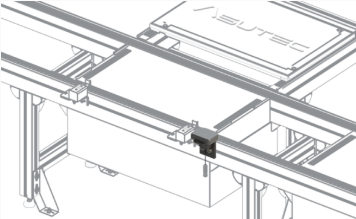

ASW

Position query.

For area monitoring and workpiece carrier

detection.

Mounting on the outer groove of the section profile

for a lateral query of the workpiece carrier

position.

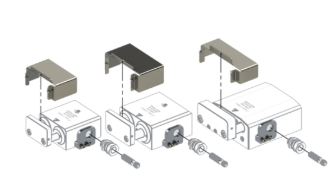

FOR ASME

Switch bracket and cover for corner stop module

Used to query the damping end position or

the retracted position of the stop plate

with inductive sensors M12x1.
